The industry-leading 3D laser scanner for both automated and manual arm and tracker

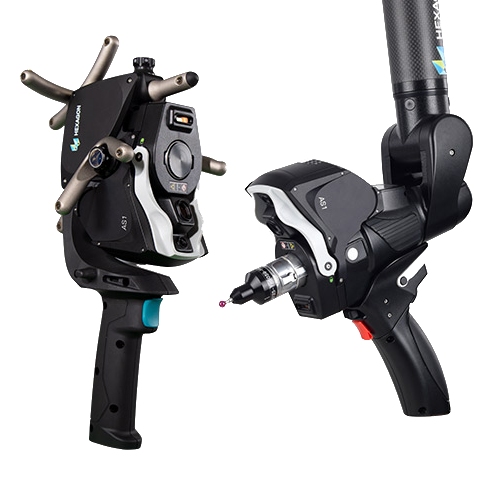

The main 3D scanning sensor for the Absolute Arm 7-Axis and Absolute Tracker AT960 systems is the Absolute Scanner AS1. It provides high-productivity non-contact 3D measuring by combining “always-on” maximum performance with straightforward usability through the use of state-of-the-art blue-laser technology and sophisticated programming. The same scanner unit can be used for both laser tracker measurement and portable measuring arm measurement, without even requiring realignment when switching, thanks to a revolutionary modular cross-platform technology idea.
With the help of our ground-breaking SHINE (Systematic High-Intelligence Noise Elimination) technology, the AS1 achieves optimal accuracy without any hidden settings that restrict speed or scan-line width. The AS1 always performs at its best, delivering the highest frame rate and laser width for optimal output. High-speed 3D scanning is now possible on every surface, regardless of material or quality, without compromising performance. The Absolute Scanner AS1 makes 3D digitization quicker, simpler, and more precise with its extra-wide horizontally oriented laser scan line and fully automatic exposure settings.
By simply flipping a switch, the AS1 can be unmounted and mounted to another referring device. In the case of the Absolute Arm, this enables safer and simpler access to touch probing functionality in difficult-to-reach places. Because of its fully repeatable attachment, it can be remounted without the need for recalibration; simply clip it back into position to start 3D scanning right away.
An Absolute Positioner AP21 device, which offers the 6DoF reference required for large-scale tracker measurement, must be used in conjunction with the Absolute Scanner in order to perform Absolute Tracker measurement. The AS1 can achieve complete accuracy to within 50 microns over the whole measurement range, up to 30 meters from the tracker, thanks to the AP21’s exceptional tuning.
When integrated into a laser tracker automation system, the AS1 is likewise prepared for automation. The AS1’s long standoff distance makes automation a safer alternative with a lower danger of collisions, and its high-speed data collecting capacity is perfect for keeping up with the speed of contemporary robot systems, enabling them to be fully utilized for greater production efficiency.
The ultimate in 3D scanner technology for laser trackers and portable measuring arms is the Absolute Scanner AS1. For components of any size, it is the best portable measurement tool available. AS1 is the way of the future for 3D scanning.
Key Features
- Large-scale accuracy
- Smaller-scale precision
- Low noise, big data
- High-speed measurement
- Scan line
- SHINE performance
- Ease-of-use
- Light movement
- Completely portable
- Visual guidance
- Automation ready
- Modular marvel
- Cross-platform compatibility
- ISO Certification
