Hexagon’s photogrammetry solutions provide speed and versatility for a variety of industrial production measurement-related applications. Our camera-based 3D optical metrology systems provide unparalleled high-speed geometric data collection for a variety of applications, including testing, inspection, and positioning operations, as well as deformation analysis and tracking applications.
High-end shop-floor photogrammetry made easy

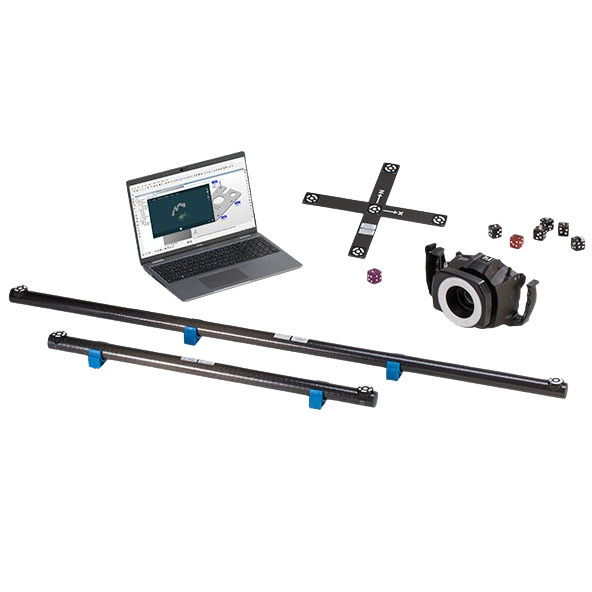

Built around the robust industrial-grade casing of the custom-designed C1 Camera, DPA Industrial is a high-end photogrammetry system that has been specifically created for both resilience and simplicity.
The C1 Camera is a 50-megapixel digital camera contained within an IP51-rated housing that makes it ideal for use on the shop floor, in the workshop or in outdoor environments. As well as its tough casing, it boasts a simplified control schema that reduces user interaction to targeting and image capture, aided by a laser targeting grid that is projected onto the measurement object.
Part of the DPA Series, DPA Industrial works in combination with the advanced DPA Pilot software platform to deliver a fully automatic workflow that can be managed by any user, with minimal training, from signalising and shooting through calculation and reporting.
Wireless and Easy 3D Scanning
Wireless System: The system’s optical tracker and 3D scanner both have strong onboard edge computing processors that process data and photos in real time and produce 3D coordinates. When used in conjunction with external WNICs and batteries, it enables wireless object measurement.
Plug-and-play: When turned on, the system connects automatically, does not require any complicated setup, and begins scanning right away.
User-friendly Operation: It offers versatile and cost-free 3D scanning, and its buttons are simple to use.
Long-distance and Large-volume Tracking
With its long-distance depth of field and dynamic adaptive LED algorithm, the TrackScan Sharp-S can track up to 8.5 meters. It enables users to easily handle a wide range of difficulties, such as measuring large-scale components in heavy industries, aircraft, and energy. Its wide tracking volume, stable structure, and strong edge calibration algorithm allow it to accomplish a 135-m3 industrial high-precision measuring range and a 233-m3 scanning range. It allows users to measure large components effectively in a single place and eliminates the inconvenience of moving trackers regularly.
Excellent and Stable Performance
The revolutionary in-house designed algorithm and metrology-grade hardware are hallmarks of the TrackScan Sharp-S measurement system. This enables the system to satisfy the most demanding industrial measurement requirements, with a maximum volumetric accuracy of 0.048 mm (10.4 m3).
With the help of CFFIM technology, the 3D scanner has a novel stable structure that guarantees both high strength and lightweight design. High-precision readings are ensured by its robust construction, steady performance, and immunity to temperature changes. Users can grasp it from any angle thanks to its integrated structure, which gives them complete control over how they handle and place it. Its components work together nicely to produce a cohesive and well-balanced appearance.
Key Features
- Edge Computing
- Stable Structure with CFFIM Technology
- 135-m³ 8.5-m Tracking
- 4,860,000 Measurements/s
- 99 Blue Laser Lines
- 25-MP Camera
