For tiny to medium-sized items, structured light scanner systems are all-inclusive 3D optical measurement solutions that provide high-accuracy data capture at fast speed.

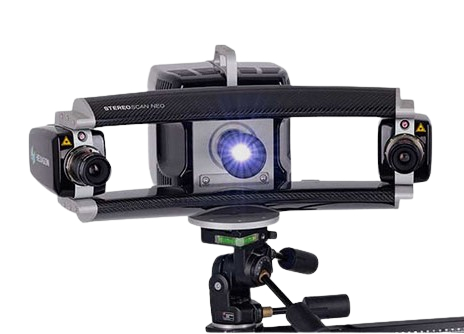

SmartScan
One of the best measuring options for intricate surface geometries and delicate or deformable items where portability is essential is the SmartScan optical 3D scanner, which is quick and incredibly accurate.
The SmartScan’s non-contact structured light scanning technology allows for extremely quick and detailed data collection. Because of its small size and light weight, the scanner may be used anywhere, even in difficult workshop settings. Because of its carbon-fibre structure, the scanner performs incredibly steadily and dependably even when subjected to temperature fluctuations.
The SmartScan, which comes in a variety of system configurations, guarantees efficient and reasonably priced area scanner measuring performance for a range of applications, such as rapid prototyping, reverse engineering, and quality control.
With the SmartScan’s white light scanning technology, even much larger items may be scanned and digitalized down to the smallest detail. The system is also compatible with a high-end photogrammetry device from the DPA Series.
Regardless of their size or complexity, items can be digitalized in a matter of seconds with the SmartScan and made immediately available as high-precision 3D data in a variety of standard formats for additional processing.
Fast, Smooth, and Efficient
SIMSCAN-E provides a high measurement rate of 6.3 million measurements/s because of its sophisticated algorithm. When combined with 81 blue laser lines and a 180-FPS frame rate, it guarantees effective and seamless scanning.
Rapid data collecting is made possible by the high measurement rate, which also provides exceptionally accurate capture of complicated geometries and minute details. The 81 blue laser lines reduce the need for repeated scans or numerous passes by offering thorough coverage and improved accuracy. Even in intricate and complicated situations, the 180 FPS frame rate guarantees excellent clarity and scan quality.
Exceptional Precision and Detail
With its powerful image enhancement algorithms and cutting-edge industrial cameras, SIMSCAN-E is built to precisely capture every minute detail. It is perfect for applications needing fine resolution and meticulous detail because of its sub-pixel feature extraction technique, which guarantees that even the smallest features are captured precisely.
Excellent for Narrow Spaces
This portable 3D scanner is lightweight, flexible, and capable of quick scanning in a variety of settings. Its steep view angle and short-range camera design significantly improve its capacity to scan obscure spaces including channels, deep holes, slots, and gaps. By doing this, data integrity is much enhanced and more comprehensive 3D data is available for additional design, inspection, analysis, and other uses.
Key Features
- Multi-surface
- Versatile measurement
- Intelligent scanning
- High resolution
- Probing option
- Portable design
- Automation ready
- Combination with DPA series
- Dedicated software plug-ins
